Product Support

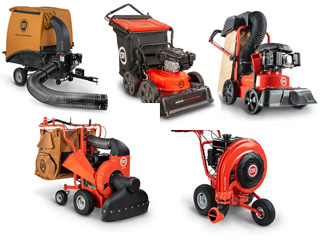

DR® Leaf and Lawn Vacuum

We want to help you keep your DR Leaf & Lawn Vacuum running in top form.

Use these resources to help maximize performance and extend the life of your investment. If there is something specific you are looking for, chat live with one of our Specialists during our business hours.

← Back to Product Category

Warranty

All DR® Leaf and Lawn Vacuums are protected against defects for two years residential use (90 days for commercial use).

See your Owner's Manual for detailed warranty information.

Promo area

Owner's Manuals, Parts Lists & Schematics

If you have any questions or are unsure of your model, please contact one of our experienced Technical Support Specialists via live chat, contact us or call us toll-free 1-800-687-6575.

Please Note: Parts Lists and Schematics are located in the back of the Owner's Manual.

Tow-Behind Leaf & Lawn Vacuum 13.74 Pro-XL (August 2010 - Present) Owner's Manual
Tow-Behind Leaf & Lawn Vacuum 9.00 Pro (August 2010 - Present) Owner's Manual
Tow-Behind Leaf & Lawn Vacuum 8.00 Premier (August 2010 - Present) Owner's Manual
Tow-Behind 8.00 Premier (Pre-August 2010) Owner's Manual
Parts List & Schematics
Tow-Behind 9.00 Premier (Pre-August 2010) Owner's Manual
Parts List & Schematics
Tow-Behind 5.50 and 6.0 HP Premier (Pre-August 2010) Owner's Manual
Tow-Behind 9.00 Commercial (May 2006 - July 2010) Owner's Manual
Parts List & Schematics
Tow-Behind 7 HP Commercial (Dec 2006 - May 2006) Owner's Manual
Tow-Behind 7 HP Commercial (April 2006 - Prior) Owner's Manual
Tow-Behind 13.74 Commercial (Subaru) Owner's Manual
Parts List & Schematics
Vacuum Hose (Tow-Behind) Owner's Manual
Parts List & Schematics
Professional Bagger (Tow-Behind) Owner's Manual
Parts List & Schematics
Mulch Discharger (Tow-Behind) Owner's Manual
Parts List & Schematics
Universal Deck Boot (Tow-Behind) Owner's Manual
Parts List & Schematics
Walk-Behind 11.50 fpt (August 2010 - Present) Owner's Manual
Walk-Behind 6.50 (Pre-August 2010) Owner's Manual
Parts List & Schematics
Walk-Behind 6 HP (Pre-August 2010) Owner's Manual
On Board Vacuum Hose (Walk-Behind) Owner's Manual
On Board Vacuum Hose (Walk-Behind) Owner's Manual (July 2010 and Prior)
Parts List & Schematics

Frequently Asked Questions

  • Q: What are the benefits among the different models?

    A: The answer depends on your property and personal preferences. If you currently enjoy mowing your lawn with a riding tractor, or if you're planning to get a rider, one of our Tow-Behind models may be ideal. These leaf collection machines work very fast and cover large areas quickly. Their extra large capacities mean you can work longer without having to empty collected debris. And with a 10:1 reduction they shred material into very fine mulch. Plus, with a Tow-Behind Leaf and Lawn Vacuum, you can work in ride-on comfort!

    The Self-Propelled Leaf and Lawn Vacuum is a great choice if you don't own a riding tractor...or if you simply prefer to walk while you work. The Self-Propelled machines are perfect for leaf collection in highly landscaped areas. They can easily get into places where a rider and Tow-Behind unit simply wouldn't fit. Steep slopes (up to 20°) - where you wouldn't take a rider - are also better-suited to a Self-Propelled model. Finally, if your yard is on the smaller side, a Self-Propelled model may be all the machine you need.

  • Q: Are they easy to start?

    A: The electric-starting models have a powerful battery that recharges as the engine runs, and they start instantly with the turn of key or flip of a switch. The manual-starting models feature compression release and electronic ignitions, for quick starts with one or two easy pulls.

  • Q: Can I use the Leaf and Lawn Vacuum on hills?

    A: Yes, the Self-Propelled and Tow-Behind models can be used on slopes up to 15° for Tow-Behind Leaf & Lawn Vacuum as per the Owner's Manual.

  • Q: How are DR products shipped?

    A: We offer 3 basic options:
    1) Delivery to a Depot
    2) Delivery to Home or Business
    3) Enhanced Home Delivery

  • Q: What happens if my machine needs service?

    A: If you ever have questions about your DR® Leaf and Lawn Vacuum, you can use our Owner Support area. It offers a rich resource of information including troubleshooting, Owner's Manuals and replacement parts. Should you have additional questions, one of our Product Specialists can help you. These folks have in-depth knowledge of the DR® Leaf and Lawn Vacuum. They've spent many hours in training and they have also put the machine through its paces mowing in a variety of conditions, so they know what they're talking about. If necessary, we can get replacement parts to you right away or direct you to one of more than 1,500 authorized DR Friendly Service Centers nationwide.

  • Q: How does your 6 Month Trial work?

    A: Simply put, you can try it on your own property for up to 6-months!

  • Q: What is your Warranty?

    A: 2 Years for Residential Use, 30 Days for Commercial Use.

Tips & Tricks

Leaf and Lawn Vacuum Tow Behind Model

Tow-Behind Models

The following information is provided to demonstrate proper techniques when operating your DR Leaf and Lawn Vacuum.

Note: This information pertains to the most recent Leaf and Lawn Vacuum models. Please refer to your Safety & Owner's Manual for instructions specific to your machine. Please refer to the Engine Owner's Manual for engine specific instructions.

Warning: Pick up stones, metal objects, glass and sticks before vacuuming.

Efficient uses of the DR Leaf and Lawn Vacuum

For the most efficient use of the DR Leaf and Lawn Vacuum, use this sequence of steps:

  1. Gather and pile sticks for chipping.
  2. Chip the smaller sticks and branches.
  3. Remove the Rear Panel and load the larger limbs.
  4. Dump the load at the desired location.
  5. Mow and vacuum leaves.

Be careful in corners

Practice in first gear to understand the effects of the Trailer on your ability to turn sharply. Drive your DR Leaf and Lawn Vacuum into the corner of your property and back out straight to mow as close to the corner as possible. Be sure to say away from fences when you want to turn, as the back will swing wide during a turn. Avoid going through ditches.

Easily attach accessories to the Collector Box

Vacuum with the discharge side toward the leaves

The Lawn Deck will tend to scatter some leaves in front and to the right of the Lawn Deck. Keeping the discharge side toward the remaining leaves will simplify cleanup by avoiding blowing leaves back onto the areas that you already finished. When you need to vacuum with the discharge side toward the completed area of the lawn, then overlap the discharge side of the Lawn Deck at least a foot over the already completed section of the lawn.

Keep grass length and cutting height low for optimal performance

To prevent clogging the Lawn Deck Adapter and Vacuum Hose, mow grass that is dry and not more 2" at a time. To keep your grass healthy, we recommend cutting less than 1/3 the grass height.

Maximize lift from your lawn deck

Run your Lawn Deck with your Tractor at full throttle all the time to maximize the lift from your Lawn Deck and assist your DR Leaf and Lawn Vacuum system.

Watch for curbs, stonewalls, and debris

Avoid dragging the Inlet Hose over curbs, stonewalls, or piles of cut branches. The Hose is tough, but can puncture on sharp objects. This could also crack the Mower Deck Adapter.

Safety Information

Important Safety Information regarding your DR Leaf and Lawn Vacuum

Warning: Read the Safety and Operating Manual before you use the DR Leaf and Lawn Vacuum. Become familiar with the service recommendations to ensure the best performance from your vacuum. (Our most recent manuals are available as a PDF download.)

Safety Rules

Labels

  • Your DR Leaf and Lawn Vacuum carries prominent labels as reminders for its proper and safe use. Your Owner's Manual shows copies of all the labels that appear on the equipment. Take a moment to study them and make a note of their location on your DR Leaf and Lawn Vacuum as you assemble and before you operate the machine. Replace damaged or missing safety and information labels immediately.

Protecting Yourself and Others Around You

This is a high-powered machine, with moving parts operating at high energy at high speeds. You must use proper clothing and safety gear when operating this machine to prevent or minimize the risk of severe injury. This machine can cut, and sever parts of your body if they become in contact with the moving chipper blades. Always take the following precautions when operating this machine:

  • Always wear protective goggles or safety glasses with side shields while operating either your tractor lawn deck, vacuum system, chipper, or performing an adjustment on your DR Leaf and Lawn Vacuum to protect your eyes from possible foreign objects thrown from the machine.
  • Wear shoes with non-slip treads when using your DR Leaf and Lawn Vacuum. If you have safety shoes, we recommend wearing them. Do not use the machine while barefoot or wearing open sandals.
  • Avoid wearing loose clothing or jewelry, which can catch on the machine's moving parts.
  • We recommend wearing long pants and gloves while using your DR Leaf and Lawn Vacuum. Be sure your gloves fit properly and do not have loose cuffs or drawstrings.
  • We recommend the use of ear protectors or ear plugs rated for at least 20 DBA to protect your hearing.

Operating the Vacuum Safely

This is a high-powered machine, with moving parts operating at high energy at high speeds. You must operate this machine safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the following precautions when operating this machine:

  • Allow only responsible individuals who are familiar with these general safety rules and operating instructions to use your DR Leaf and Lawn Vacuum. Never allow people who are unfamiliar with these instructions to use the machine.
  • Keep bystanders at least 100 feet away from your work area at all times. To be safe, do not operate the machine near small children or pets, and never allow children to operate the vacuum. Stop the vacuum engine and tractor engine when another person or pet approaches.
  • Clear the work area of objects such as rocks, string-like material, wires, rope, or rags. Ingesting these objects into the vacuum could damage the machine and/or cause injury.
  • Be sure all controls are disengaged before attempting to start the engine.
  • Never place your hands, feet, or any part of your body near or under any moving part while the machine is running.
  • Do not touch the exhaust area, including the muffler and engine when the machine is in use as they become very hot and can cause a severe burn. Allow the engine to cool before doing maintenance or making adjustments.
  • Keep combustible substances away from the engine.
  • Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the DR Leaf and Lawn Vacuum. This includes all shields and guards. Modifications to your machine could cause personal injuries and property damage and will void your warranty.
  • Do not alter or tamper with safety devices or shields. Make sure they are in proper position.
  • Do not operate in sandy areas where you will vacuum large quantities of sand. Sand will erode the vacuum housing. Check for pin holes after each use and replace the hose or housing when pin holes develop.
  • Keep your hands and combustible substances away from the engine when it is hot and clean the engine area after each use.
  • For Walk-Behind Models: Never operate the machine on slopes greater than 20°.
  • For Walk-Behind Models: Never use the machine with the debris bag removed.
  • For Walk-Behind Models: Always wear gloves when emptying the debris bag.
  • For Walk-Behind Models: After vacuuming glass, bottles or cans, dispose of this waste properly, never in a compost pile.
  • For Walk-Behind Models: We recommend changing both the optional disposable debris bag liner and the outer debris bag after vacuuming glass and other debris and before using the system to vacuum material that may be used for compost or mulch.
  • For Tow-Behind Models: Never allow people or pets to ride in the collector box or on the trailer.
  • For Tow-Behind Models: Never start the blower/chipper engine unless it is bolted firmly to the engine mounting plate and the mounting plate is attached firmly to the trailer chassis using the four (4) retaining knobs. See your Owner's Manual.
  • For Tow-Behind Models: Check behind your DR Leaf and Lawn Vacuum before backing up. You cannot see directly behind the collector box.
  • For Tow-Behind Models: Never attempt to dump a load while the lawn tractor engine or the DR Leaf and Lawn Vacuum engine is running.
  • For Tow-Behind Models: Do not attempt to open the collector box when your DR Leaf and Lawn Vacuum engine or your lawn deck engine is operating. Debris may exit at high velocity out of the small openings created in the seams of the collector box as you unlatch the collector box panels.
  • For Tow-Behind Models: Never operate the machine on slopes greater than 15?.
  • For Tow-Behind Models: When using the DR Leaf and Lawn Vacuum as a trailer, be sure to secure the load.
  • For Tow-Behind Models: Never tow the DR Leaf and Lawn Vacuum faster than 8 mph.
  • For Tow-Behind Models: Keep your hands out of the chipper hopper and vacuum inlets while the lawn tractor and the DR Leaf and Lawn Vacuum engines are running. If it becomes necessary to push material into the hopper, use a small diameter stick.
  • For Tow-Behind Models: Always shut off the lawn tractor engine and the DR Leaf and Lawn Vacuum engine, and disconnect the spark plug wire before attempting to clear any obstructions in the hoses or chipper hopper.
  • For Tow-Behind Models: Always feed the chipper from the chipping zone (see your Owner's Manual). Never straddle or reach over the engine area at any time.
  • For Tow-Behind Models: Use only your hands to operate the DR Leaf and Lawn Vacuum engine controls. Always dismount your lawn tractor when starting and stopping the DR Leaf and Lawn Vacuum engine to prevent contact with the hot muffler.

Slope Operation

Slopes are a major factor related to slip and fall, or tip over accidents, which can result in severe injury. All slopes require caution. If you feel uneasy on a slope, do not vacuum it. Always take the following precautions when using this machine on slopes:

  • For Walk-Behind Models: Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes.
  • For Tow-Behind Models: Mow up and down the face of slopes and never across. Exercise extreme caution when changing direction on slopes.
  • Always remove objects such as glass, large sticks, stones, metal objects, wire, rope, rags, and string-like material.
  • Always watch out for holes, ruts, or bumps. Tall grass can hide obstacles.
  • Never mow near drop-offs, ditches, or embankments. You could lose control of your lawn tractor (if applicable) and machine, or your footing or balance.
  • Never mow on slopes greater than 20 degrees (15 degrees for Tow-Behind Models) or any excessively steep slopes. For Tow-Behind Models, see the Operating Parameters in your Owner's Manual for further restrictions relating to your lawn tractor.
  • Never mow on wet or slippery slopes. Reduced traction could result in slipping and a possible roll over.
  • Never park the vacuum or lawn tractor (if applicable) on a steep grade or slope.

Safety for Children and Pets

Tragic accidents can occur if the operator is not alert to the presence of children or pets. Children are often attracted to the tractor and the vacuuming/chipping activity. Never assume that children will remain where you last saw them.

  • Keep children and pets out of the work area and under the watchful care of a responsible adult.
  • Be alert and always turn off the lawn tractor (if applicable) and the DR Leaf and Lawn Vacuum engine if children or pets enter the work area.
  • Before and while moving backwards, look behind, and down for small children and pets. With Tow-Behind Models you cannot see directly behind the collector box.
  • Never allow children to operate the lawn tractor or DR Leaf and Lawn Vacuum.
  • Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure your vision.
  • Never allow children to operate the lawn tractor (if applicable) or vacuum, even if the engine is not running.
  • For Tow-Behind Models: Never allow children to play in the collector box. if they become trapped in the enclosure they may be exposed to temperatures similar to leaving a child in a car with the windows closed on a sunny day.

Safety with Gasoline-Powered Machines

Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always follow these precautions:

  • Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon monoxide, which is an odorless, tasteless, and deadly poisonous gas.
  • Store all fuel and oil in containers specifically designed and approved for this purpose and keep away from heat and open flame, and out of the reach of children.
  • Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Do not handle gasoline if you or anyone nearby is smoking, or if you're near anything that could cause it to ignite or explode. Replace the fuel tank and fuel container caps securely.
  • If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly dispose of the waste.
  • Allow the engine to cool completely and empty the collector box before storing the DR Leaf and Lawn Vacuum in any enclosure. Remember, decomposing material can generate heat and start a fire. Never store the machine with gas in the tank or a fuel container, near an open flame or spark such as a water heater, space heater, clothes dryer or furnace.
  • Never make adjustments or repairs with the engine running. Disconnect the spark plug wire and keep the wire away from the spark plug to prevent accidental starting.
  • Never check for an ignition spark with the spark plug or spark plug wire removed. Always use an approved spark plug tester.
  • Never tamper with safety devices. Regularly check their proper operation.
  • Never tamper with the engine's governor setting or modify the engine speed. The governor controls the maximum safe operating speed and protects the engine. Over-speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the machine. If required, see your authorized engine dealer for engine governor adjustments.
  • To reduce fire hazard, keep the engine and muffler area free of debris build-up such as leaves, grass, oil, grease, or any other combustible material. Clean the engine area after each use.
  • Do not operate the engine with the air cleaner or the cover over the carburetor air-intake removed, except for adjustment. Removal of such parts could create a fire hazard.
  • Never operate the engine without the muffler. Inspect the muffler periodically and replace if necessary. If equipped with a muffler deflector, inspect the deflector periodically and replace if necessary.
  • Always check fuel lines and fittings frequently for cracks or leaks, replace if necessary.

General Safety

The DR Leaf and Lawn Vacuum must be operated safely to prevent or minimize the risk of minor or moderate injury. Unsafe operation can create a number of hazards for you. Always take the following precautions when operating this machine:

  • Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and themselves.
  • Your DR Leaf and Lawn Vacuum is a powerful tool, not a plaything. Exercise extreme caution at all times. The design of this machine is to vacuum debris. Do not use it for any other purpose.
  • Know how to stop the vacuum quickly; see your Owner's Manual.
  • Use the DR Leaf and Lawn Vacuum only in daylight.
  • While using the vacuum, do not hurry or take things for granted. When in doubt about the equipment or your surroundings, stop the machine and take the time to look things over.
  • Never leave the DR Leaf and Lawn Vacuum unattended with the engine running.
  • Do not operate the machine when under the influence of alcohol, drugs, or medication.
  • Never allow people or pets to ride on the DR Leaf and Lawn Vacuum.
  • Never operate the vacuum near hot or burning debris or any toxic or explosive materials.
  • Vibration is generally a warning of trouble. If the machine should start making an unusual noise or vibration, immediately shut off the engine, disconnect the spark plug wire, allow all moving parts to come to a complete stop, and wait five (5) minutes to cool. Disconnect the spark plug wire and inspect for clogging, damaged, or worn impeller, loose impeller bolt, loose impeller key, or loose engine mounting bolts. Clean and repair and/or replace damaged parts.
  • Always shut off the DR Leaf and Lawn Vacuum engine, wait five (5) minutes to cool, and disconnect the spark plug wire before attempting to clear any obstructions.
  • Always keep the equipment in a good safe operating condition. Always make certain nuts and bolts are tight and always use the supplied self-locking hardware; do not substitute.
  • For Walk-Behind Models: Never start the engine without the debris bag attached firmly to the top shield assembly. See your Owner's Manual.
  • For Walk-Behind Models: Never attempt to remove the debris bag while the DR Leaf and Lawn Vacuum engine is running. Debris may exit at high velocity out of the openings created in the seams as you unlatch the debris bag.
  • For Walk-Behind Models: Empty the debris bag after each use to prevent spontaneous combustion due to decaying material.
  • For Tow-Behind Models: Remove side branches before chipping to prevent jamming the material in the chipper hopper.
  • For Tow-Behind Models: Do not attempt to chip wood larger than specified in this manual.
  • For Tow-Behind Models: Never use the DR Leaf and Lawn Vacuum to vacuum anything but yard waste, such as leaves, grass, small twigs and pine cones.
  • See manufacturer's instructions for proper operation and installation of accessories. Only use accessories approved by DR Power Equipment, Inc.
  • No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate the DR Leaf and Lawn Vacuum in a safe manner.

A Note to All Users

Under California law, and the laws of some other states, you are not permitted to operate an internal combustion engine using hydrocarbon fuels without an engine spark arrester. This also applies to operation on US Forest Lands. We provide all DR Leaf and Lawn Vacuums shipped to California and Washington State with spark arresters. Failure of the owner/operator to maintain this equipment in compliance with state regulations is a misdemeanor under California law and may be in violation of other state and/or federal regulations. Contact your local fire marshal or forest service for specific information in your area.

Additional Information and Potential Changes

DR Power Equipment, Inc. reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described within this manual may be optional. Some illustrations may not be applicable to your machine.

Troubleshooting

Leaf and Lawn Vacuum Walk Behind Model

Walk-Behind Models

A guide to solving common problems with your DR® Leaf and Lawn Vacuum

Most problems are easy to fix. Consult the Troubleshooting Table for common problems and their solutions. If you continue to experience problems, you can contact our Technical Support Specialists for more detailed support.

Warning: When performing any maintenance, you must first shut off the engine, wait five (5) minutes for all parts to stop and cool, and disconnect the spark plug wire, keeping it away from the spark plug. Read the safety considerations section of your Owner's Manual before performing any repairs or maintenance.

Recoil will not pull out or is difficult to pull.

  • Check for debris in the Impeller Housing.
  • Check the Engine oil level, adjust as needed. If the level is too low, then Engine may be seized.
  • There may be an oil compression lock in the cylinder. Take out the Spark Plug; hold a rag over the Spark Plug hole and pull the Recoil Cord several times to blow out any oil in the cylinder. Wipe off the Spark Plug and reinstall it.
  • The Recoil may be broken or jammed. Try to turn the Engine pulley by hand, with the Spark Plug wire off. If it turns, the Recoil is broken or jammed.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

The Engine turns over, but won't start.

  • Check for proper attachment of the Spark Plug wire.
  • Check that the Debris Bag is properly installed, latched and the Bag Presence Interlock Switch is depressed. See your Owner's Manual. Also, check that the Bag frame rod is not bent.
  • Check the oil and gas level.
  • You should be using fresh, clean, unleaded gas. If the gas is old, change it. Use a fuel stabilizer if you keep gas longer than one month.
  • Check the Throttle adjustment and travel. See your Owner's Manual.
  • The Spark Plug should be clean. If the Spark Plug is dirty or cracked, replace it. If it's oily, leave it out, hold a rag over the Plug hole and pull the Recoil Cord several times to blow out any oil in the cylinder. Wipe off the Plug and reinsert it.
  • The Air Filter may be dirty, change it following the procedure in the Engine Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

    (Please refer to the Engine Owner's Manual for engine-specific procedures.)

The Engine won't start using electric start.

  • Review the Starting procedure section in your Owner's Manual.
  • Check the wire connections - especially the ground connection, the large black wire coming from the Battery, where it connects to the Engine.
  • Check the wire connections to the solenoid. Disconnect the black Battery ground wire first to avoid sparks. Check to be sure that all of the connections are clean and tight. Reconnect the Battery ground wire.
  • Check the ground connection on the Solenoid where it's bolted to the Frame. Using a Wrench or Socket, tighten the Bolts to ensure a good connection to the Frame.
  • The Battery may not be charged. Check the voltage yourself or at a gas station. If it's low, charge it with a 12-volt, 1 to 2 Amp trickle charger. If you don't use your vacuum for at least 45 minutes at a time, the Battery may need to be periodically charged. See the Battery Care section in your Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

    (Please refer to the Engine Owner's Manual for engine-specific procedures.)

The Engine lacks power or is not running smoothly.

  • Check the Throttle to make sure it is set in the FAST position.
  • If the Air Filter is dirty, change it following the procedure in the Engine Owner's Manual.
  • Check Spark Plug(s). If it is dirty or cracked, replace it. If the Spark Plug(s) is oily, leave it out, hold a rag over the Plug hole(s) and crank the Engine a couple of times using the Electric Starter to blow out any oil in the Cylinder(s). Wipe off the Plug(s) and reinsert it.
  • You should be using fresh, clean, unleaded gas. If the gas is old, change it. Use a fuel stabilizer if you keep gas longer than one month.
  • The Engine may not have the right amount of clean oil. If the oil is dirty, change it following the procedure in your Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

    (Please refer to the Engine Owner's Manual for engine-specific procedures.)

Engine smokes.

  • Check the oil level and adjust as needed.
  • You may be operating the machine on too great an incline. See "Slopes" in your Owner's Manual.
  • Check the Air Filter and clean or replace if needed.
  • You may be using the wrong oil - too light for the temperature. Refer to your Engine Owner's Manual for detailed information.
  • Clean the Engine cooling fins and the carburetor housing if they are dirty.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

Will not vacuum or has poor vacuum performance.

  • The Debris Bag is full or dirty. See your Owner's Manual
  • Be sure the Engine Throttle is set on the fast (RABBIT) position.
  • The Nozzle height is set too high or too low. See your Owner's Manual.
  • The Hose Kit Cap is missing on the Nozzle Door.
  • The Nozzle or Impeller Housing is clogged.
  • Excessive amount of debris being vacuumed; take smaller amounts at a time allowing air to feed with the debris. Use 1st or 2nd gear for best results.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

Vibrations higher than normal.

  • The Impeller is loose or out of balance. Tighten or replace the Impeller. See your Owner's Manual.
  • The Engine Mounting Bolts are loose. Tighten the Engine Mounting Bolds. See your Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

No Self-Propelling Action.

  • The Transmission is not in gear. See your Owner's Manual.
  • The Drive Clutch is not engaged. Pull the Drive Clutch Lever up against the Handlebar.
  • The Drive Clutch Cable is out of adjustment or broken. Adjust or replace the Drive Clutch Cable. See your Owner's Manual.
  • The Drive Belt is worn or broken. See your Owner's Manual.
  • The Drive Chain is off the Sprocket. See your Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

The Self-Propelled Drive will not release.

  • Improper Drive Clutch Cable adjustment or there is a kink in the Cable. See your Owner's Manual.
  • The Drive Clutch Cable needs lubrication. Lubricate the control cables more frequently in dusty environments.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

Noisy Drive Chain.

  • The Drive Chain needs lubrication. See your Owner's Manual.
  • The Drive Chain is out of adjustment. See your Owner's Manual.
Leaf and Lawn Vacuum Tow Behind Model

Tow-Behind Models

A guide to solving common problems with your DR® Leaf and Lawn Vacuum

Most problems are easy to fix. Consult the Troubleshooting Table for common problems and their solutions. If you continue to experience problems, you can contact our Technical Support Specialists for more detailed support.

Warning: When performing any maintenance, you must first shut off the engine, wait five (5) minutes for all parts to stop and cool, and disconnect the spark plug wire, keeping it away from the spark plug. Read the safety considerations section of your Owner's Manual before performing any repairs or maintenance.

Recoil will not pull out or is difficult to pull.

  • Check for debris in the Chipper Hopper.
  • Check the Engine oil level, adjust as needed. If the level is too low, then Engine may be seized.
  • There may be an oil compression lock in the Cylinder. Take out the Spark Plug, hold a rag over the Spark Plug hole, and pull the Recoil Cord several times to blow out any oil in the Cylinder. Wipe off the Spark Plug and reinstall it.
  • The Recoil may be broken or jammed. Try to turn the Engine pulley by hand, with the Spark Plug wire off. If it turns, the Recoil is broken or jammed.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

The Engine turns over, but won't start.

  • Check for proper attachment of the Spark Plug wire.
  • Check that the Engine has the right amount of clean oil. If the oil is dirty, change it following the procedure in your Owner's Manual.
  • You should be using fresh, clean, unleaded gas. If the gas is old, change it. Use a fuel stabilizer if you keep gas longer than one month.
  • Check the Throttle adjustment and travel. (See your Owner's Manual.)
  • The Spark Plug should be clean. If the Spark Plug is dirty or cracked, replace it. If it's oily, leave it out, hold a rag over the Plug hole and pull the Recoil Cord several times to blow out any oil in the cylinder. Wipe off the Plug and reinsert it.
  • Check that the Safety Interlock Switches are depressed. See your Owner's Manual for switch locations.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

    (Please refer to the Engine Owner's Manual for engine-specific procedures.)

The Engine won't start using electric start.

  • Review the Starting procedure section in your Owner's Manual.
  • There is a fuse in the wiring harness. Check the fuse and replace if needed.
  • Check the wire connections - especially the ground connection, the large black wire coming from the Battery, where it connects to the Engine.
  • Check the wire connections to the solenoid. Disconnect the black Battery ground wire first to avoid sparks. Check to be sure that all of the connections are clean and tight. Reconnect the Battery ground wire.
  • Check the ground connection on the Solenoid where it's bolted to the Frame. Using a Wrench or Socket, tighten the Bolts to ensure a good connection to the Frame.
  • The Battery should be charged. Check the voltage yourself or at a gas station. If it's low, charge it with a 12-volt, 1 to 2 Amp trickle charger. If you don't use your vacuum for at least 45 minutes at a time, the Battery may need to be periodically charged. See the Battery Care section in your Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

    (Please refer to the Engine Owner's Manual for engine-specific procedures.)

The Engine lacks power or is not running smoothly.

  • Check the Throttle travel.
  • The Choke should be pushed all the way to the left - in the run position.
  • If the Air Filter is dirty, change it following the procedure in the Engine Owner's Manual.
  • Check Spark Plug(s). If it is dirty or cracked, replace it. If the Spark Plug(s) is oily, leave it out, hold a rag over the Plug hole(s) and crank the Engine a couple of times using the Electric Starter to blow out any oil in the Cylinder(s). Wipe off the Plug(s) and reinsert it.
  • You should be using fresh, clean, unleaded gas. If the gas is old, change it. Use a fuel stabilizer if you keep gas longer than one month.
  • The Engine may not have the right amount of clean oil. If the oil is dirty, change it following the procedure in your Owner's Manual.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

    (Please refer to the Engine Owner's Manual for engine-specific procedures.)

Engine smokes.

  • Check the oil level and adjust as needed.
  • You may be operating the machine on too great an incline. See "Slopes" in your Owner's Manual.
  • Check the Air Filter and clean or replace if needed.
  • You may be using the wrong oil - too light for the temperature. Refer to your Engine Owner's Manual for detailed information.
  • Clean the Engine Cooling Fins and the Carburetor Housing if they are dirty.
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

Trailer wheels tracking left or right while being towed.

  • Check the tire pressure. Check tire pressures and be sure not to exceed the maximum safe pressure marked on the tires by the manufacturer.

Vibrations higher than normal.

  • Check for Chipper Blade damage. (See your Owner's Manual.)
  • NOTE: You must replace the Chipper Blade if damaged.

Lawn Deck is not vacuuming well.

  • Be sure the Lawn Deck Blades are engaged and running at full throttle.
  • Be sure the Deck is set at the proper mowing height.
  • Be sure the vacuum Engine is running at full throttle.
  • Use 1st or 2nd gear on your Lawn Tractor for best results.
  • Look for clogs along the Collector Box Inlet Hose. Shake the Hose to loosen and free any clog.
  • Turn off the Lawn Tractor Engine and Vacuum Engine, and check the Hose Adapter for clogs. (See your Owner's Manual.)
  • Turn off the Lawn Tractor Engine and Vacuum Engine, and disconnect the Vacuum Engine Spark Plug Wire. Check for clogs in the Blower Exit Elbow and Inlet Hose. Remove the Hose and shake clogs loose. (See your Owner's Manual.)
  • If you continue to experience problems, further troubleshooting is needed. Our Technical Service Specialists can assist in a more in-depth diagnosis.

Leaves come out of the top of the Centrifugal Separator and the Collector isn't full.

  • Check for clogs along the edges of the Centrifugal Separator cone.
  • Check the Collector Box Inlet Hose to be sure it is about 4 to 6 inches inside the Centrifugal Separator Inlet and approximately level. (See your Owner's Manual.)

Leaves or grass come of the top of the Side Panels.

  • Be sure the Pin is in the hole in the center of the top of the Side Panels. (See your Owner's Manual.)
  • Be sure all of the Panel Flexible Latches are secure.

Maintenance

Leaf and Lawn Vacuum Walk Behind Model

Walk-Behind Models

Regular maintenance is the way to ensure the best performance and long life of your DR Leaf and Lawn Vacuum.

For engine maintenance, please refer to the Engine Owner's Manual that came with your machine. Service intervals listed in the checklist below supersede those listed in the Engine Owner's Manual.

When performing any maintenance, you must first shut off the engine, wait five (5) minutes for all parts to stop and cool, and disconnect the spark plug wire, keeping it away from the spark plug. Read the safety considerations section of your Owner's Manual before performing any repairs or maintenance.

Regular Maintenance Checklist

Procedure Before Each Use Every 8-10 hours Every 25 hours Every 100 hours
Check Engine Oil Level
Clean the Debris Bag
Check the general condition of the machine, e.g. nuts, bolts, welds, etc.
Clean Engine Exterior and Cooling Fins
Check Battery Voltage (Electric Start Model)
Inspect the Drive Belt* for wear
Lubricate Control Cables
Lubricate the Drive Chain*
Check Drive Clutch Cable* tension
Change Engine Oil and Filter**
Note: First time after five (5) hours of operation
Replace Air Filter and Pre-Cleaner**
Replace Drive Belt*
Replace Spark Plug

Note: Consider that service intervals show to be maximum under normal operating conditions. Increase frequencies under extremely dirty or dusty conditions.

* Applicable to Self-Propelled Models

** The engine on your DR Walk-Behind Leaf and Lawn Vacuum may not have a Pre-cleaner or Oil Filter

Leaf and Lawn Vacuum Tow Behind Model

Tow-Behind Models

Regular maintenance is the way to ensure the best performance and long life of your DR® Leaf and Lawn Vacuum.

Please refer to your Owner's Manual and the Engine Owner's Manual for maintenance procedures. Service intervals listed in the checklist below supersede those listed in the Engine Owner's Manual.

When performing any maintenance, you must first shut off the engine, wait five (5) minutes for all parts to stop and cool, and disconnect the spark plug wire, keeping it away from the spark plug. Read the safety considerations section of your Owner's Manual before performing any repairs or maintenance.

Regular Maintenance Checklist

Procedure Before Each Use Every 25 hours Every 100 hours
Check Engine Oil Level
Check blower hoses for wear, holes, or abraded areas
Check the general condition of the machine, e.g. nuts, bolts, welds, etc.
Make sure engine retaining knobs are tight
Check tire pressure (See side of tire)
Clean Engine Air Filters
Change Engine Oil
Note: First time after five (5) hours of operation.
Clean Engine Exterior & Cooling Fins
Check Battery Charge
Lubricate Drive Belt Bearings
(Subaru Engine Model only)
Replace Spark Plug
Replace Engine Air Filters

Note: Consider that service intervals show to be maximum under normal operating conditions. Increase frequencies under extremely dirty or dusty conditions.

End of Season and Storage

Leaf and Lawn Vacuum Walk Behind Model

Walk-Behind Models

The following information is provided to demonstrate proper techniques when storing your DR Leaf and Lawn Vacuum.

Note: This information pertains to the most recent Leaf and Lawn Vacuum models. Please refer to your Safety & Owner's Manual for instructions specific to your machine. Please refer to the Engine Owner's Manual for engine specific instructions.

When performing any maintenance, you must first shut off the engine, wait five (5) minutes for all parts to stop and cool, and disconnect the spark plug wire, keeping it away from the spark plug. Read the safety considerations section of your Owner's Manual before performing any repairs or maintenance.

End-of-Season Procedure

  • Change the oil.
  • If your DR Walk-Behind Leaf and Lawn Vacuum will be idle for more than 30 days, we recommend using a gas stabilizer. This will prevent sediment from gumming up the carburetor. If there is dirt or moisture in the gas or tank, remove it by draining the tank. Completely fill the tank with fresh, unleaded gas and add the appropriate amount of stabilizer or gasoline additive. Run the engine for a short time to allow the additive to circulate.
  • Remove the spark plug and pour about 1 ounce of motor oil into the cylinder hole. Replace the plug and pull the recoil starter rope until you feel strong resistance. This will coat the piston and seat the valves to prevent moisture buildup.
  • Clean or replace the air filter.
  • Clean dirt and debris from the cylinder head cooling fins, impeller housing, debris screen, and muffler area of the engine.
  • Clean the Debris Bag. For Step-by-Step Instructions on removing and emptying the Debris Bag, see your Owner's Manual.
  • For Electric-Start models, store the Battery in a dry area that will not freeze. If you will not use the machine over a long period, charge the Battery every four to six weeks. See your Owner's Manual for more information on Battery Care.
Leaf and Lawn Vacuum Tow Behind Model

Tow-Behind Models

The following information is provided to demonstrate proper techniques when storing your DR Leaf and Lawn Vacuum.

Note: This information pertains to the most recent Leaf and Lawn Vacuum models. Please refer to your Safety & Owner's Manual for instructions specific to your machine. Please refer to the Engine Owner's Manual for engine specific instructions.

When performing any maintenance, you must first shut off the engine, wait five (5) minutes for all parts to stop and cool, and disconnect the spark plug wire, keeping it away from the spark plug. Read the safety considerations section of your Owner's Manual before performing any repairs or maintenance.

End-of-Season Procedure

  • Change the oil.
  • If your DR Tow-Behind Leaf and Lawn Vacuum will be idle for more than 30 days, we recommend using a gas stabilizer. This will prevent sediment from gumming up the carburetor. If there is dirt or moisture in the gas or tank, remove it by draining the tank. Completely fill the tank with fresh, unleaded gas and add the appropriate amount of stabilizer or gasoline additive. Run the engine for a short time to allow the additive to circulate.
  • Remove the spark plug and pour about 1 ounce of motor oil into the cylinder hole. Replace the plug and pull the recoil starter rope until you feel strong resistance. This will coat the piston and seat the valves to prevent moisture buildup.
  • Clean or replace the air filter. Clean dirt and debris from the cylinder head cooling fins, blower housing, debris screen, and muffler area of the engine.
  • Clean out residual debris from the Blower Hoses and Collector Box.
  • If you are going to use the DR Leaf and Lawn Vacuum Tow-Behind as a trailer during the end of season, we recommend that you remove and store the engine in a dry location. (See your Owner's Manual for removal of the Blower/Chipper Unit.)
  • For minimal storage space, or if you store outside, you can disassemble the Collector Box by removing the Rear & Front Panels, Centrifugal Separator (Top), and the Side Panels. The Collector Box pieces then can be stacked against a wall in a convenient location. (See your Owner's Manual disassembly and re-assembly of the Collector Box.)

Enter your email address and Click Submit. You will receive an email shortly.
