DR Leaf and Lawn Vacuum
Walk-Behind Leaf Vacs

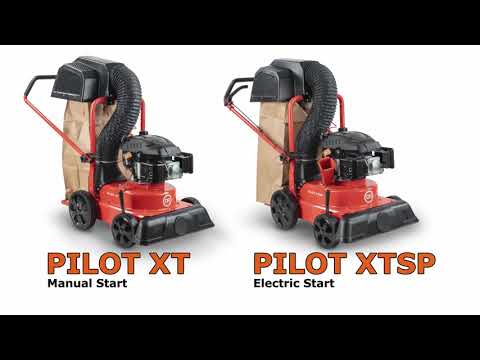

PILOT XTSP (Direct Bagging)
DR Direct Bagging Leaf Vacs (1:42)
PILOT XTSP Leaf and Lawn Vac :
- 4.3 HP (173 cc) DR OHV Engine with electric start (recoil backup)
- Capacity: 3 cu. ft. (50 lbs)

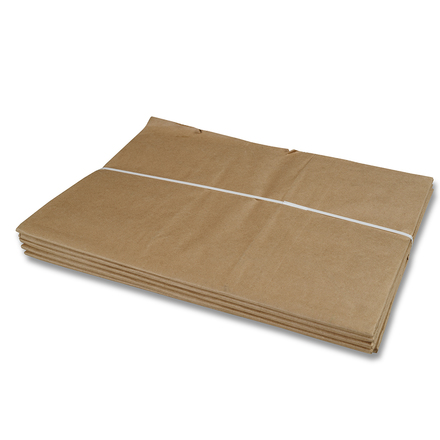

- Uses standard paper leaf bags
- Bag caddie included (holds 10)
- Onboard chipper: handles sticks and branches up to 1.5” in diameter.
- Intake height: 1” to 4”
- Never flat wheels, 8” x 2” (front), 10” x 2” (rear)
- All-steel impeller with a Lifetime Warranty
- Weight: 120 lbs
Warranty:
- Engine: 2 years residential
- Machine: 2 years residential
Unique Direct Bagging System!
The DR PILOT XTSP Self-Propelled Leaf and Lawn Vac is a powered leaf collector designed to work with standard, disposable leaf bags. You can collect up to 50 pounds of mulched leaves in a single bag and, when it's full, it’s ready for curbside pickup or the compost pile.
The DR's unique EZ Bagger Leaf Collection System makes operation easy. Just unlatch the EZ Bagger's cover, place an empty bag on the fold-down platform, crimp the bag around the support ring, and latch the EZ Bagger shut. It’s a simple, fast, and labor-saving alternative to the drudgery of raking and bagging by hand.
The included paper bag caddie carries 10 leaf bags, and you can add an optional second carrier to tote as many as 20 empty bags.
EZ Bagger Leaf Collection System
A uniquely designed system that lets you fill standard leaf bags so they are ready for curbside pickup or the compost heap. The platform holds the bag, the support ring provides a crimp bar for quick installation and the latch keeps it secure.
Self-Propelled
Just squeeze the ergonomic lever on the right side to increase speed. Flex speed cone clutch system provides variable forward speed from 0-2 mph.
Ready for Pickup!
When the bag is filled, you simply open the cover, remove the bag, and crimp it closed. It’s ready for the curbside (or the compost pile).
Onboard Chipper
An onboard chipper that lets you dispose of branches up to 1.5 inches in diameter as you work your way around the yard.
EZ-Bagger Support Ring
Crimp the paper bag around the support ring and close the cover. The cover is fitted with a channel that will hold the bag firmly in place and create a seal to maximize airflow.
3-in-1 Action
Leaves are drawn in through the adjustable intake and fed into the impeller which mulches the leaves before whisking them into the leaf bag.

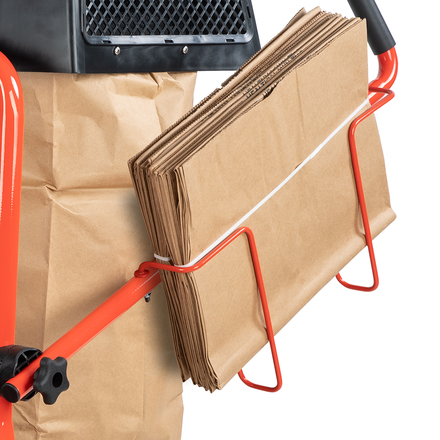

Leaf Bag caddie
Holds 10 standard leaf bags so you have empties on hand as you make your rounds. One caddie included with the machine. Add another to your order for the ability to carry 20 — enough to collect up to 1000 pounds!
Adjustable Intake
Adjust the intake from 1" to 4". Keep setting high in very dry conditions with short grass or dial it down in wet conditions or when collecting leaves on longer grass.
All Steel Impeller
More durable than the plastic impellers used on competitive products. So durable it is covered by a LIFETIME WARRANTY.
Optional Hose Kit
Use the optional hose kit to reach up to 7 feet away from the machine and clean up spots you can’t reach otherwise. Great for window wells, along foundations, beneath shrubs, etc.
| General | |
|---|---|
| Assembly | Yes |
| Dimensions | |
|---|---|
| Height | 42" |
| Length | 52" |
| Shipping Weight | 150 lbs |
| Weight | 120 lbs |
| Width | 26" |
| Shipping Dimensions | 26"W x 42"H x 52"L |
| Hauling | |
|---|---|
| Hauling Capacity | 3 Cubic Ft |
| Weight Capacity | 50 LBS |
| Engine | |
|---|---|
| Air Filter | Dual-Element |
| Displacement | 173cc |
| Engine Type | OHV RV170 |
| Ft Lbs Torque | 6.6 ft-lb |
| Horsepower | 4.3 |
| Lubrication | Splash |
| Make | DR |
| Oil Capacity | 0.5L |
| Oil Type | SAE 30W HD |
| RPM Speeds | 3600 rpm |
| Starting Type | Electric and Recoil |
| Wheels_Tires | |
|---|---|
| Front Tire Size | 8" X 2" |
| Rear Tire Size | 10" X 2" |
| Tread | Plastic Turf Wheel |
| Warranty | |
|---|---|
| Engine Warranty | 2 Year Residential Use, 1 Year Commercial Use |
| Machine Warranty | 2 Year Residential Use, 90 Day Commercial Use |
| Fuel_System | |
|---|---|
| Fuel Capacity | 1.0L |
| Chipping | |
|---|---|
| Chipper Knife Material | Hardened Tool Steel |
| Chipper Knife Size | 3" |
| Chipper Knife Speed | 144 MPH |
| Chipping Capacity | 1.5" Diameter |
| Hopper Opening Size | 2.78" X 2.68" |
