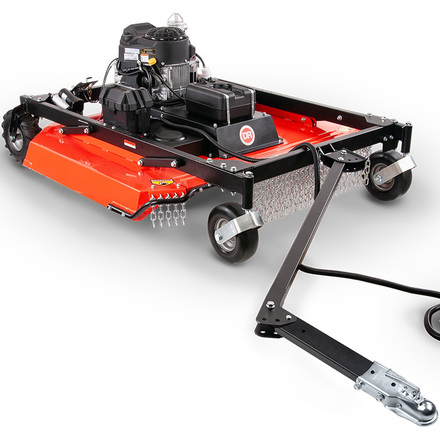

DR Field and Brush Mower
PRO MAX60T
Product Summary
- 24 HP Electric-Starting Kawasaki OHV V-Twin engine
- 60" mowing deck
- Mows up to 2.7 acres per hour
- Tow Vehicles: ATV, UTV, or Tractor
- Floating deck rides over obstacles
- Mows outside wheelbase
- Mulches everything
- Remote Control for blade engagement and cutting height adjustment
- Fixed blades
Warranty Coverage
- Machine: 2 years residential; 90 days commercial
- Engine: 3 years residential; 3 year commercial
Our Widest Cut In Its Class!
The DR PRO MAX60T is the biggest and most powerful Tow-Behind Field and Brush Mower we have ever offered. With a Kawasaki 24HP Commercial Engine and 60" cutting width, this juggernaut will take down the toughest growth you can throw at it and do it fast–covering up to 2.7 acres per hour. Towed with your ATV or UTV, this is the truly easy way to reclaim your property—in ride-on comfort.
Push Button Cutting Height Adjustment
The PRO MAX cuts from 4" to 8" high and you can adjust mowing height on the fly with the electric lift feature. A rocker switch (mounted on the same remote control as the blade engagement switch) makes it easy to change on the go.
Commercial 24HP Kawasaki FS730V OHV
The Kawasaki OHV V-twin features easy electric starting and fuel-efficient performance. With 24HP (726cc) it has plenty of power to churn through thick grass and brush.
Floating Deck
The deck is suspended from the frame, allowing it to ride up and over high points, minimizing scalping and protecting the drivetrain from damage.
Assembled in the USA
Assembled in the USA using foreign and domestic parts. Ships direct from our Wisconsin factory.
Electric Lift Height Adjustment
Make easy adjustments to the cutting height (from 4" to 8") from your tow vehicle. A battery powered actuator does the work, allowing you to change mowing heights on the fly, without stopping.
Remote Control
The cabled remote control can be routed to your tow vehicle, and it handles two different functions: 1) engaging the blade and 2) raising or lowering the cutting height.
Chain Debris Guard
Similar to the debris shields used on commercial roadside mowers, this guard stops material from flying forward.

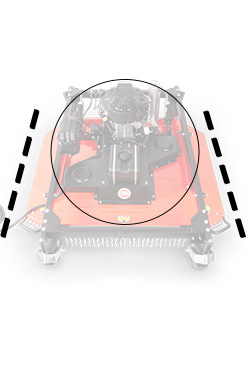

Mows Outside Wheelbase
The mowing blade extends outside of the wheels—so you can mow right up next to fences, walls, hedgerows and other obstacles without interference.
60" Mulching Deck
The 60" mowing deck is enclosed on 3 sides, so cut material is chopped and re-chopped, leaving no windrows behind.
Outrigger Tow Bar
The 2-piece tow bar allows for offsetting the mowing deck to the left or right…or you can mow right behind your tow vehicle.
Mow up to 2.7 acres per hour!
Mowing times will vary with conditions (density of growth and features of terrain), but hooked up to your ATV the PRO MAX60T Brush Mower can clear as much 2.7 acres per hour—while you ride in comfort!
| Clutch | |
|---|---|
| Clutch | Electric |
| Cutting | |
|---|---|
| Blade Tip Speed | 18,500 ft/min |
| Cutting Capacity | 6'-high grass; 8'-high weeds & brush; 3"-thick saplings |
| Cutting Height | 4" - 8" Electric Actuator |
| Cutting Width | 60" |
| Maximum Cutting Speed | 5 mph |
| Number of Blades | 2 |
| Discharge Location | Rear |
| Dimensions | |
|---|---|
| Height | 32.5" |
| Length | 156" |
| Shipping Weight | 675 LBS |
| Weight | 650 LBS |
| Width | 66" |
| Shipping Dimensions | 91" L x 59" W x 40" H |
| Engine | |
|---|---|
| Air Filter | Dual-Element |
| Displacement | 726cc |
| Horsepower | 24HP |
| Lubrication | Full Pressure Pump w/Oil Filter |
| Make | Kawasaki FS730V |
| Number Of Cylinders | 2 (w/ Cast-Iron Sleeves) |
| Oil Capacity | 67.6oz (2.1 qts) |
| RPM Speeds | 3600 RPM |
| Starting Type | Electric |
| Fuel_System | |
|---|---|
| Fuel Capacity | 2-1/2 gal |
| General | |
|---|---|
| CARB Certified | No |
| Assembly | Yes |
| Warranty | |
|---|---|
| Engine Warranty | 3 Year Residential, 3 Year Comm |
| Machine Warranty | 2 Year Residential, 90 Day Comm |
| Wheels_Tires | |
|---|---|
| Front Tire Size | 11 X 4-5, Flat Free |
| Rear Tire Size | 14 x 5-6, Lugged (tubeless) |
