DR Chipper Shredder

DR Chipper Shredder

PRO XL520

 (33  reviews)
Sale: $3,299.99
TOP

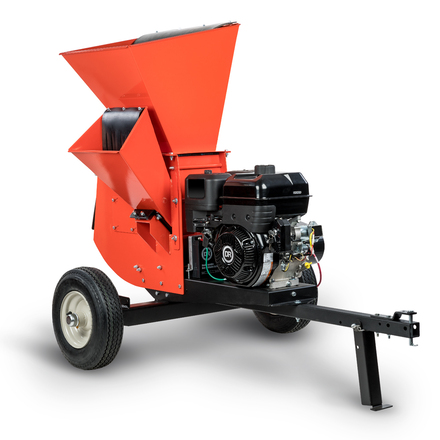

DR Chipper Shredder

PRO XL520
 (33  reviews)
List:$3,599.99
Sale:$3,299.99
Free Enhanced Home Delivery
Ships in 5 to 6 Weeks
$199.99
$289.99
BEST VALUE
$369.99 $295.99
OTHER MODELS
OVERVIEW
OVERVIEW
Chipper shredder chips branches and shreds brush

Complete Property Cleanup

The PRO XL520 Chipper Shredder does it all. Its shredding action is produced by 24 serrated, free-swinging hammers. This superior shedding technology reduces lighter materials 20:1...pulverizing leaves, sticks and other yard and garden waste (up to 1.5" thick) into a fine mulch that you can compost or till into your soil. And its side chipper chute will demolish branches up to 5" in diameter. The PRO XL520 lets you get all of your yard cleanup done with one versatile machine.

Chipper shredder chips branches and shreds brush

Take it Wherever the Work Is!

The PRO XL520 comes standard with a pin hitch for off-road use with your ATV, UTV or lawn tractor. And, if you add our optional road-towing kit, you’ll get everything you need to take the DR on public roads at speeds of up to 45 miles per hour.

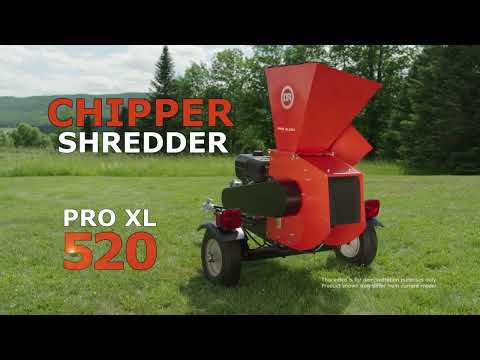

DR Power PRO XL520 Chipper Shredder    (1:44)

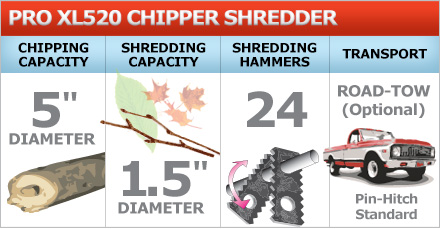

Product Summary:

  • 5" Chipping Capacity
  • 1.5" Shredding Capacity
  • 24 Free-Swinging Shredder Hammers
  • DR OHV Engine; 12 HP (420cc)
  • Electric-Starting with recoil backup
  • 8" x 14" Chipper Hopper Opening
  • 19" x 17" Shredder Hopper Opening
  • Hardened Steel PRO-SPEC™ Chipper Knife
  • Wheels: 16" x 4.6"
  • Weight: 407 lbs.
  • Pin hitch standard

Warranty Coverage

  • Engine: 2 years residential; 1 year commercial
  • Machine: 2 years residential; 90 days commercial

FEATURES
FEATURES
Self-Feeding

Serrated Shredding Hammers

Our unique, serrated shredding hammers use their jagged edges to pulverize materials fed into the shredder hopper and reduce it by 20:1. The result is a fine “pre-composted” mulch that can enrich your garden soil. Hammers are reversible and can also be rehung from the opposite hole to provide fresh surfaces for chewing up materials up to 1.5” in diameter.

Self-Feeding

Self-Feeding Action

A large vertically oriented hopper, a precisely-angled heavy-duty chipping knife, and a powerful air channel work together to pull branches into the chipping hopper and blast wood chips out the discharge. Most materials will self-feed, so once you drop a branch in your free to get the next one. No force feeding required!

Hopper

Oversized Hoppers

The shredder hopper opening is 19" x 17", big enough to accept multiple stalks up to 1.5" thick along with side branches and leaves. The chipper opening (8" x 14") accepts branches up to 5" in diameter.

Towing

TOW IT WHEREVER THE WORK IS!

The PRO XL520 comes standard with a pin hitch for use with ATV, UTV or lawn tractor. With the addition of our optional road towing kit, you can take the PRO XL520 on public roads at speeds up to 45mph.

Chipper Knife

Pro-Spec™ Chipper Knife

Made of high-carbon/high-chromium forged alloy tool steel, our knives hold an edge longer than those on "bargain" chippers. Still, as with any cutting tool, keeping a sharp edge is important for maintaining peak performance. We recommend keeping an extra on hand so you can minimize downtime.

Road tow kit

ROAD TOW KIT

Add the Road-Towing Package to your PRO XL520 Chipper Shredder for safe and easy transport on the road up to 45 miles per hour. Road-Towing Package includes: Lights, Fenders, Wiring, Ball Hitch, and Safety Chains.

SPECS
SPECS
Engine
Air Filter Dual element
Displacement 420CC
Ft Lbs Torque 19.6
Horsepower 12
Lubrication Splash
Make DR
Model OHV
Number Of Cylinders 1
Oil Capacity 1.2 Quarts
Oil Type SAE 30W HD
RPM Speeds 3600 (+/- 100)
Starting Type Electric
Chipping
Chipper Knife Size 6-1/4"
Chipper Knife Speed 97 MPH
Chipping Capacity 5"
Hopper Opening Size 8" x 14"
Dimensions
Flywheel Weight 33 lbs
Shipping Weight 560 lbs
Weight 407 lbs.
Shipping Dimensions 78"L x 49"W x 50"H
Fuel_System
Fuel Capacity 1.7 gal (run time 45-60mins)
Shredding
Hammer Features 24 free swinging, serrated, reversible 3 additional times
Standard Screen 1"
Shredding Capacity 1-1/2"
Warranty
Engine Warranty 2 Year Residential, 90 Day Commercial
Machine Warranty 2 Year Residential, 90 Day Commercial
Wheels_Tires
Number of Tires 2
Tire Size 16" x 4.6"
